DC Power Versions of All Industrial Monitors and Touch Screens

In case you didn’t already know, all of Hope Industrial Systems’ industrial monitors and touch screens are available with either AC or DC power input. These units operate with an input range of 9.6 to 36.6 VDC and are equipped with an industrial pluggable terminal block with locking screws. An AC-to-DC power supply is available for bench testing . These monitors include the same 3-year warranty, 30-day total satisfaction guarantee, quick shipping, and superior customer service that you have come to expect from Hope Industrial Systems.

17" Panel Mount and 23" Universal Mount Monitor with DC Power shown
Cable exit views of 17″ Panel Mount (left) and 23″ Universal Mount (right) monitors showing DC input

Specifications

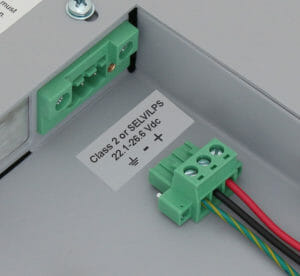

DC Power Input Terminal Block with Locking Connector
DC input terminal block and locking connector
  • Available on all Hope Industrial monitors and touch screens
  • 9.6 VDC/2.5 A to 36.6 VDC/0.65 A, 24 W max
  • Three-wire industrial pluggable locking connector (with DC positive, DC ground, Earth ground)
  • AC/DC power supply for bench testing available:
    • AC input: 100 to 240 VAC, 50-60 Hz
    • DC output: 19 VDC, 2.1 A
