Display

  • Size – 17.0″ diagonal
  • Native Resolution – SXGA (1280 x 1024, 5:4 aspect ratio)
  • Brightness (white) – 250 nits (cd/m2) max
  • Contrast Ratio – 1000:1
  • Backlight (typical) – LED; 60,000 hour brightness half-life
  • Type – Thin-film Transistor (TFT) Active Matrix Liquid Crystal
  • Image Size (W x H) – 338 mm x 270 mm
  • Plug and Play – DDC1/2Bi compatible
  • Minimum Resolution – VGA (640 x 480)
  • Pixel Pitch – 0.264 mm x 0.264 mm
  • Number of Colours – 16.7 million
  • Viewing Angle (Hori/Vert), typical – 170° / 160°

Window Options

  • Single-Touch Resistive Touch Screen
    • Technology – 5-wire single-touch resistive sensor. Pressure sensitive for use with any stylus or glove. Polyester cover sheet with anti-glare acrylic hard-coat. Single-touch gestures supported.
    • Interface – USB or RS-232 interface to computer (both connections are included on touch screen monitors); USB cable included
    • If the touch screen will be exposed to sunlight, whether direct or indirect, please choose our glass-armoured resistive or PCAP touch solutions that will not lose clarity over time as a result of UV rays; call for details.
  • Fully Tempered Glass Window (non-touch) – 2.8 mm to 3.0 mm glass window with 90% gloss anti-glare surface finish. Fully tempered to ASTM C1048 standards for higher impact and scratch resistance. Passes ball-drop test, 500 g at 1.2 m.
  • Optional Acrylic Window (non-touch) – acrylic glazing provides a scratch-resistant and shatter-resistant window; anti-reflective coating with 99% reduction of glare; thermal insulating and anti-static; 99% UV blocking

Video

  • Input Connectors – HD-15, DVI-I; standard VGA video cable included
  • Compatible Inputs Using Optional Adapter (call for details)
    • HDMI (via DVI to HDMI adapter); part number: ADAP-DVIDM-HDMIF
    • DisplayPort (via DisplayPort to DVI adapter); part number: ADAP-DPM-DVIIF
    • BNC (via 5-wire BNC to HD-15 adapter); part number: C20A
  • Input Signal Formats
    • RGB Analogue video, 0.7/1.0 Vp-p, 75 Ohms; Compatible sync modes: Separate H/V sync
    • DVI
    • NTSC/PAL composite input available; call for details
  • Horizontal Scan – 31-73 kHz
  • Vertical Scan – 50-75 Hz
  • Common Supported Video Standards
    • SXGA – 1280 x 1024 @ 60 (native), 75 Hz
    • 1024 x 768 @ 60, 70, 72, 75 Hz
    • 800 x 600 @ 56, 60, 72, 75 Hz
    • 720 x 400 @ 70 Hz
    • 640 x 480 @ 60, 75 Hz
    • See user manual for a full list of resolution and timing compatibility
  • Response Time (typical) – 5 ms

Electrical

  • Power Input
    • AC Power Models – 100 to 240 VAC, 1.5/0.75 A, 60/50 Hz; AC power cable included
    • DC Power Models – 9.6 to 36.6 VDC, 2.5 to 0.65 A, Class 2 or SELV/LPS
  • Power Consumption (typical) – 16.8 W
  • Power Consumption (standby mode) – < 4 W

Environmental

  • Panel Rating (with proper installation) – IP20; NEMA/UL Type 1. More on IP / NEMA ratings.
  • Operating Temperature – 0° to 50°C
  • Storage Temperature – -20° to 60°C
  • Humidity – 20% to 90% non-condensing
  • Operating Shock – 15 g, 6 msec, half-sine
  • Operating Vibration (sine) – 1.0 g, swept sine 9-500 Hz
  • Transport Vibration (random) – 0.1g² / Hz, 10-200 Hz; 0.03g² / Hz, 200-2000 Hz
  • Altitude – Operating: up to 3.05 km; Non-operating: up to 12.19 km
  • Environmental Sulphur Gas Protection Option – includes glass-armoured touch screen, vapour-phase corrosion inhibitor, and extensive sealing; call for details. More on Sulphur Gas Protection.

Functional

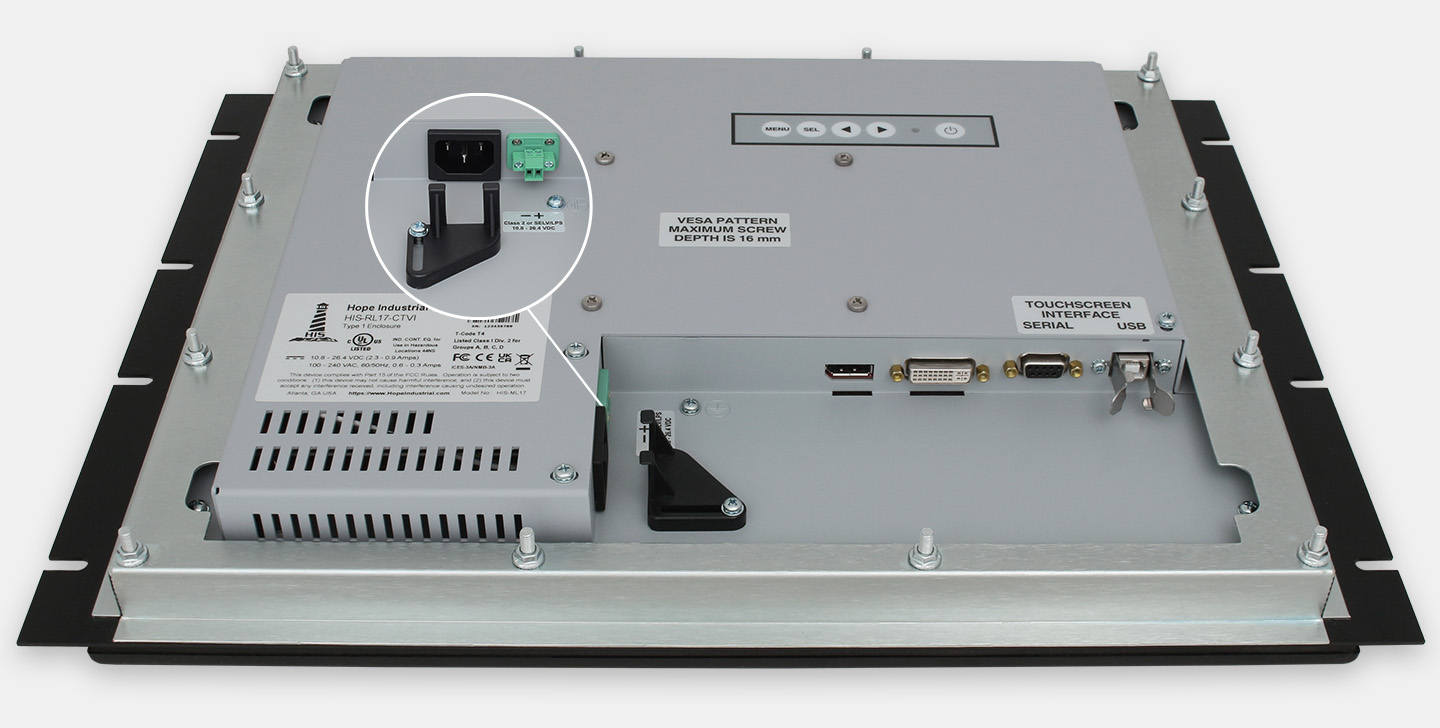

  • Panel Controls (rear access) – Menu, SEL, Left, Right, Power
  • OSD (On Screen Display) Controls – Contrast, Brightness, Sharpness, Color, Timing, Auto setup, H total, V position, H position, Phase, Inputs, OSD, Info, Reset to factory defaults, Source scan, Advanced Setup

Physical

  • Enclosure Type – rack mount; standard EIA 19″ rack width; 8U height with 4 mounting slots
  • Bezel Material – black powder-coated carbon steel faceplate
  • Maximum Depth Behind Bezel – 44.2 mm
  • Front Bezel Outside Dimensions (W x H x D) – 482.6 mm x 354.8 mm x 3.175 mm
  • Net Weight – 7.26 kg
  • Shipping Weight – 9.07 kg

Compliances and Certifications

17" Industrial Rack Mount Monitors and Touch Screens
Power InputWindow OptionPart NumberPrice
ACSingle-Touch Resistive Touch ScreenHIS-RL17-CTDH$1,010£845€965965 €HIS-RL17-CTDH
Glass (non-touch)HIS-RL17-CGDH$895£750€855855 €HIS-RL17-CGDH
Acrylic (non-touch)HIS-RL17-CADH$905£755€865865 €HIS-RL17-CADH
DCSingle-Touch Resistive Touch ScreenHIS-RL17-CTTH$1,070£895€1,0201.020 €HIS-RL17-CTTH
Glass (non-touch)HIS-RL17-CGTH$955£800€910910 €HIS-RL17-CGTH
Acrylic (non-touch)HIS-RL17-CATH$965£805€920920 €HIS-RL17-CATH
